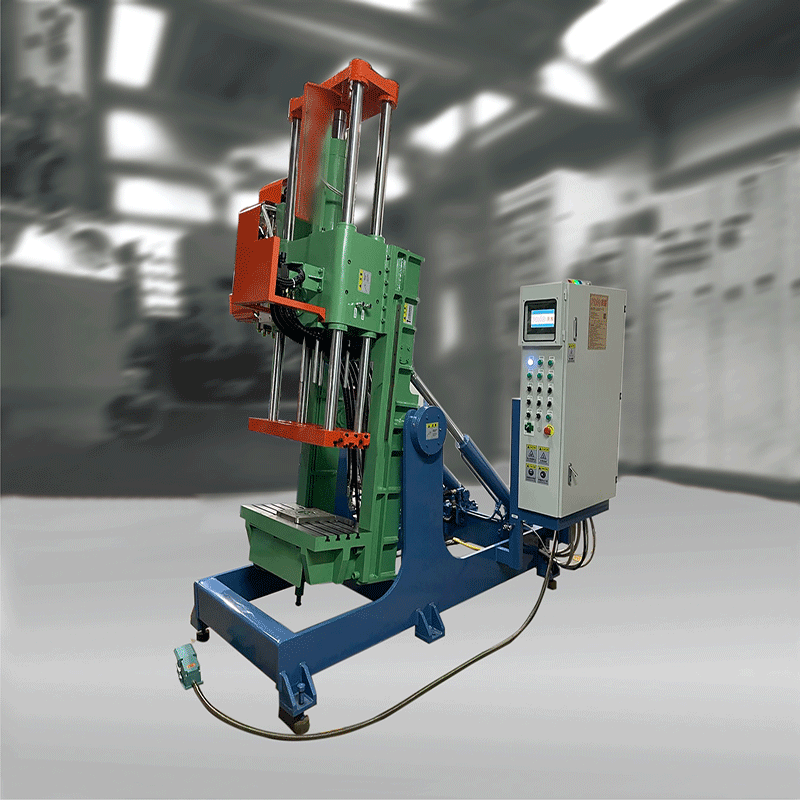

Item No.: PN2B650-ZL GRAVITY DIE CASTING MACHINE FOR

ALUMIINUM

Technical Parameter:

1. Controlled by a PLC control unit.

2. Running: Hydraulic transmission & water cooling system (A hydraulic master

cylinder system can control three casting machines).

3. Casting function: tilting moving casting, fixed tilting casting, horizontal casting.

4. Casting speed & time are adjustable, size angle: 0-85 degrees.

5. Casting piece picking angle: two choices, Horizontal 0 degree & Tilt 85

degrees.When mold is open, the down mold starts to eject, working together with

upper mold so that work piece can be taken out easily.

6. The time of cooling mold is adjustable. Zone cooling with 6 air ports(which are

marked from No.1to No.6)

7. The size of die holder of moving mold: 1000*900*140mm

The size of die holder of fixed mold: 1000*900*180mm

8. Ejector plate of fixed mold: 450*320*20mm

9. Working table rotating bearing capacity: 4000kgs,power: 11KW.

10. Max engaging distance: 700mm.

11. The max space between the fixing board of the mold: 1200mm.

12. The pressure of engaging mold: 6300kg.

13. Fuel tank capacity：250L, working oil pressure ：40-50kg/cm2.

14. Solid time are adjustable.

15. The time of casting can be shown.

16. The net weight of machine: around 7000kgs.

17. Machine dimension: 3241mm*2495mm*2266mm(working space).
