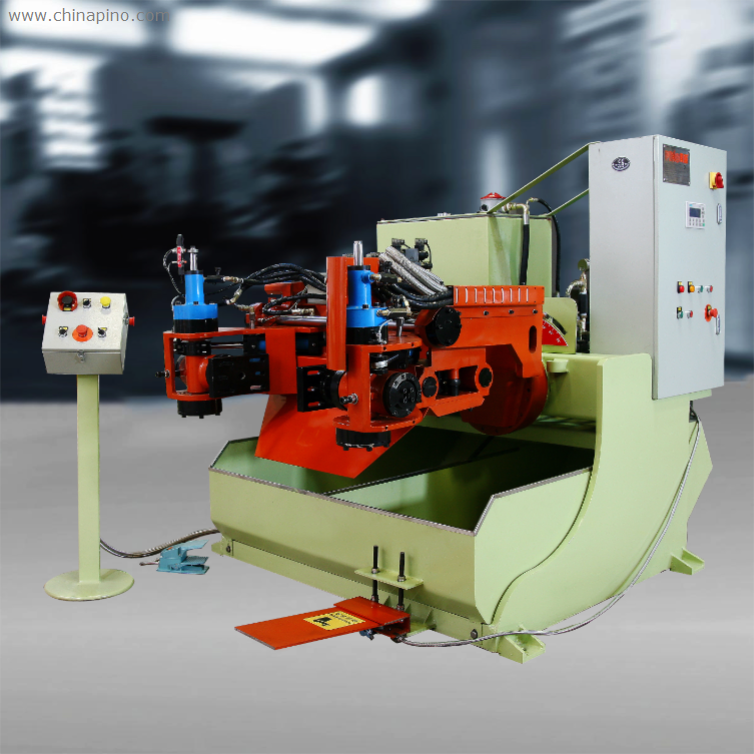

Item no: PN2B03B-135 GRAVITY DIE CASTING MACHINE

Technical Parameters:

1. Controlled by a PLC control unit.

2. Running: Hydraulic Transmission.

3 .The stir method of dipping tank: By vane electric machinery.

4. Casting Function: Side pouring, frontal pouring, Combined pouring

5. Casting speed & angle are adjustable. Side angle: 0-135 degrees, frontal angle

0-110 degrees, mold steeping angle 0-90 degrees.

6. Max. Mold diameter: 500mm

7 Max casting volume:150kg

8. The time & frequency of cooling can be set up individually.

9. Casting method: Automatic & Manual.

10. Ejection function (optional)

11. Having Safety foot board

12 .One cycle total time: 20-30 seconds.

13. Pump power: 3.75KW+0.75KW+0.75KW

14 .dimensions (L*W*H) (1500*2400*1800)MM
