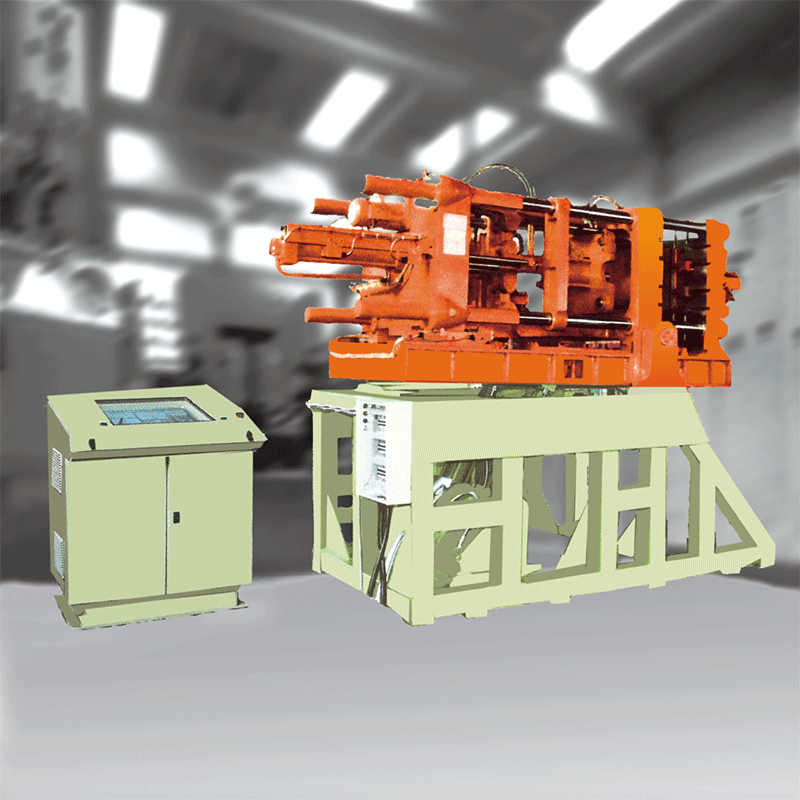

Technical Parameters:
1. Controlled by a PLC control unit. (Mitsubishi)
2. Running: Hydraulic transmission & water cooling system (A hydraulic master cylinder system can control three casting machine)
3 .Casting function: tilting moving casting, fixed tilting casting, horizontal casting
4. Casting speed & angle are adjustable. Size angle: 0-75℃
5. The time of cooling is adjustable
6. The size of die holder of fixed mold: 650*300*70mm
7. Max weight of mold: 200kg
8. Having safety footboard (the set to protect the operator)
9. Pump power: 7.5KW
10. Maximum of opening stroke distance: 400mm
11. Fixed plate spacing on both sides of the mold: 550mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity：250L
14. The pressure of working oil：40-50kg/cm2
15. Solid time is adjustable
16. The time of casting can be shown
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold cannot be engaged
19. The net weight of machine: 2500kg
20. Machine dimension: 2500mm*1500mm*1700mm
