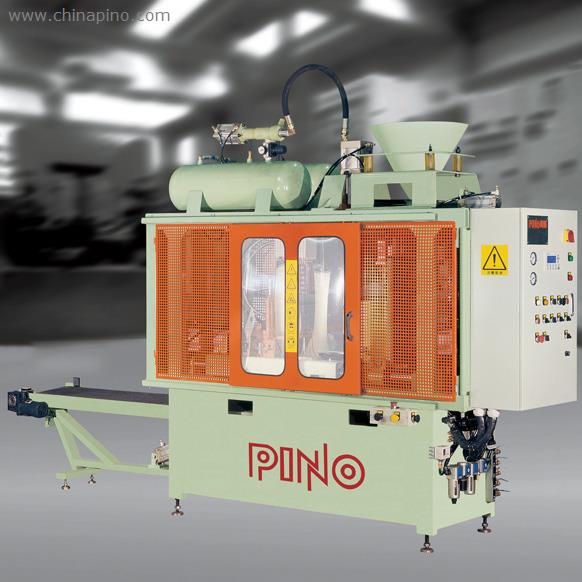

PN1A02S-B AUTOMATIC CORE BLOWER MACHINE

Technical parameter:

1、Controlled by PLC control unit

2、Running: Air pressure transmission

3、Operation : Manual, semi-automatic, full automatic（having conveyer belt）

4、Power: It can be selected, having heated pipes 12pcs×1000W in each side

5、Able to select dry status cores or wet status cores in a multi-cavity core mold.

6、Heated by electric elements, automatic constant temperature (moveable& static

mold can control temperature singly).

7、Automatic core mold cleaning

8、mold engage stroke:300mm

9、Ejection stroke:30mm(moveable mold adopts mechanical and static mold pulled

by tank)

10、Core-pulling function: Standard route: 150mm& adjustable

11、Max focus distance of shooting material’s hole: 320mm

12、Having two safety doors

13、Fixing floodlight inside the machine

14、Operation’s tension of air pressure: 0.5～0.7Mpa

15、Min. cycle time in theory: 20seconds

16、Max weight of the core mold: 4000g

17、Heating board size: 350×220×60mm

18、Max. mold size: 400×270×120mm each side

19、Distance between the two heating boards: 460mm

20、Machine dimension: 3160×650×2400mm
